PRO מנדף למינארי הוריזנטלי פוליפרופילן-דגם מתקדם

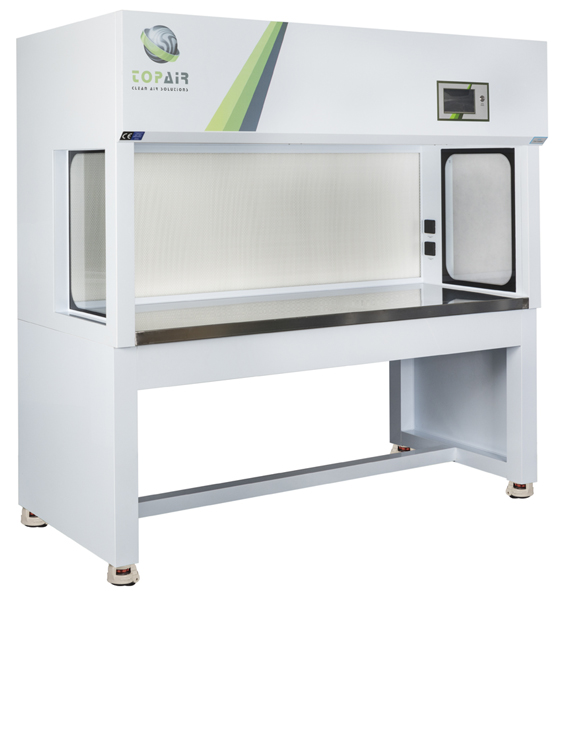

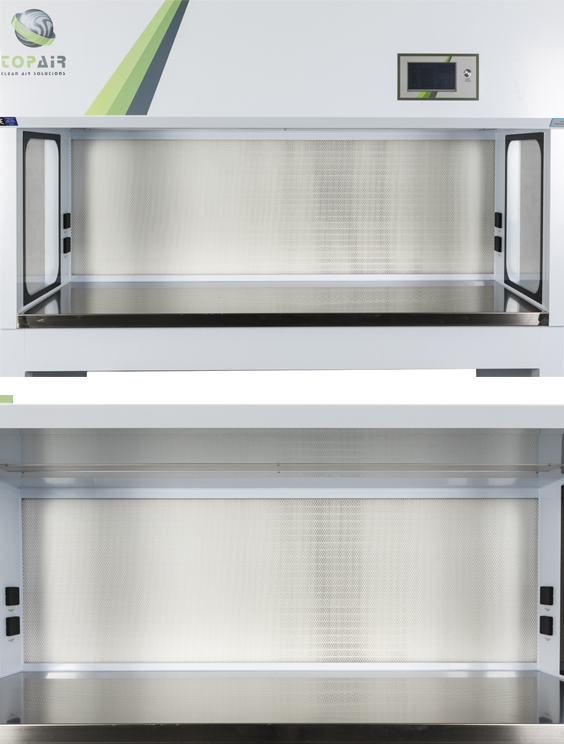

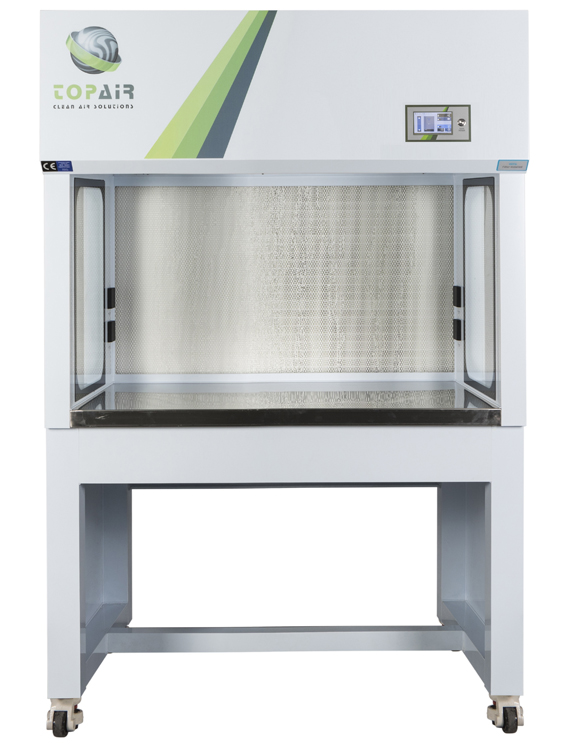

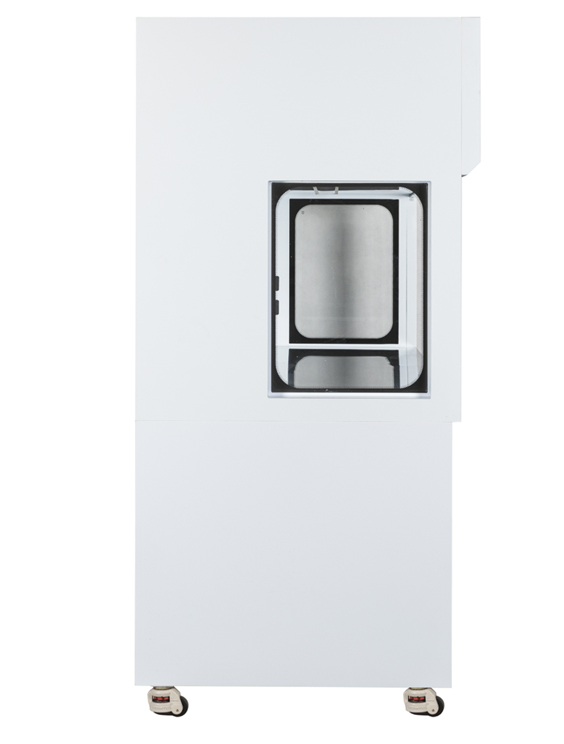

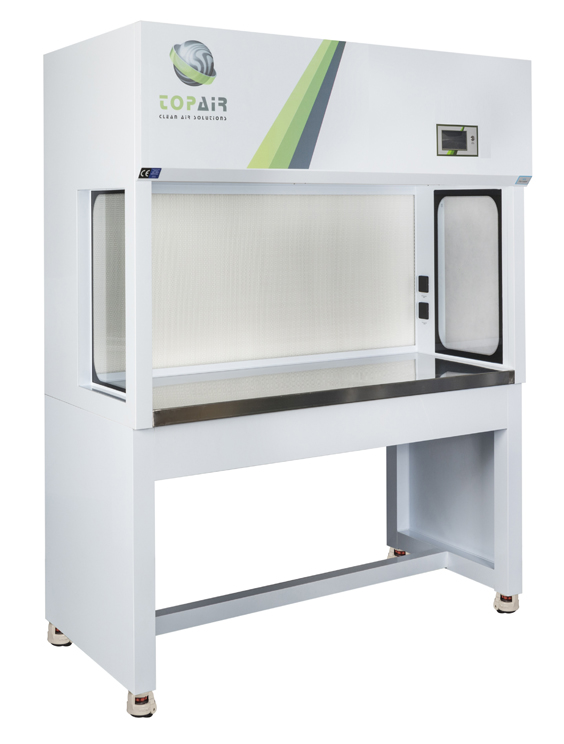

TopAir provides high quality, secure Horizontal Laminar Clean Benches. TopAir’s clean benches suck air from the room or hall space, transfer the air through a HEPA filter using a fan, and then clean the bench area with filtered air.

In Horizontal Benches, the filtered air flows through a filter installed at the back of the bench, toward the staff.

Red Light Alarm:
Whenever there is an air velocity failure, a red light inside the unit switches on  and the system light automatically switches off.
This enables convenient detection of failures from a distance , even by hearing-impaired people.

All components are manufactured by leading global companies, such as AAF USA.

The Clean Bench complies with production/test standard USA Federal Standard 209E / ISO 1- 144641 and can be customized to customer requirements.

Clean benches are designed to supply a clean controlled work environment meeting Class 100/ISO5 cleanliness standard, resembling a clean room, with the additional advantages of portability and small dimensions.

Clean benches provide a high quality alternative to a clean room at a much lower cost and without massive construction.

  • Horizontal air stream producing clean air in compliance with ISO5/ CLASS100 or ISO4/Class10 standards (depending on the filter installed).
  • Polypropylene structure with high chemical resistance
  • Work surface made of 304 stainless steel
  • Advanced Operation System: 7” color touch screen with air velocity display,  automatic air velocity control,  hour timer for filter , filter replacement alarm
  • Red light alarm upon an air velocity failure
  • Side windows made of tempered glass
  • High efficiency quiet EC fan
  • Optional stand
  • Universal electrical outlet
  • Innovative, advanced design
  • Variety of sizes and materials; optional stand
  • Eco-friendly, cost-effective LED lighting
  • Compliance with Test Standard: US Federal Standard 209E / ISO-14644-1 / CE
Model
Description
HC-090-STStand
HC-090-UV-FSCombined UV light and front sash
HC-090-VBSeparated “floating” table
Spec/Model HC-H090P HC-H120P HC-H150P HC-H180P
Outer Dimensions
W x D x H
900 x 930 x 1200 mm
35.4 x 36.6 x 47.2”
1200 x 930 x 1200 mm
47.2” x 36.6 x 47.2”
1500 x 930 x 1200 mm
59 x 36.6 x 42.2”
1800 x 930 x 1200 mm
70.8 x 36.6 x 47.2”
Workspace
(WxDxH)
770 x 620 x 600 mm
30.3 x 24.4 x 23.6”
1070 x 620 x 600 mm
42.1 x 24.4 x 23.6”
1370 x 620 x 600 mm
53.9 x 24.4 x 23.6”
1670 x 620 x 600 mm
65.7 x 24.4 x 23.6”
Test standard USA Federal Standard 209E / ISO-14644-1, CE USA Federal Standard 209E / ISO-14644-1, CE USA Federal Standard 209E / ISO-14644-1, CE USA Federal Standard 209E / ISO-14644-1, CE
Air Velocity m/s 0.3 m/s, 60 FPM 0.4 m/s, 80 FPM 0.4 m/s, 80 FPM 0.4 m/s, 80 FPM
Cleanliness
within workstation
Class-100 (FS 209E) ISO 4, ISO-14644-1 Class-100 (FS 209E) ISO 4, ISO-14644-1 Class-100 (FS 209E) ISO 4, ISO-14644-1 Class-100 (FS 209E) ISO 4, ISO-14644-1
Hood Material Polypropylene Polypropylene Polypropylene Polypropylene
Work table material Stainless steel SUS 304 Stainless steel SUS 304 Stainless steel SUS 304 Stainless steel SUS 304
Noise (Tested 20 cm from the work table, 1.2m above ground) <50dB <50dB <54dB <54dB
Test Location Tested 20 cm from the work table, 1.2m above ground Tested 20 cm from the work table, 1.2m above ground Tested 20 cm from the work table, 1.2m above ground Tested 20 cm from the work table, 1.2m above ground
Power Supply 110 / 220V, 50/60 Hz, Single phase 110 / 220V, 50/60 Hz, Single phase 110 / 220V, 50/60 Hz, Single phase 110 / 220V, 50/60 Hz, Single phase
Illumination 800 LUX LED lighting 800 LUX LED lighting 800 LUX LED lighting 800 LUX LED lighting
Filter HEPA Filter Efficiency of 99,9995% at 0.3 Microns H14 (Optional ULPA filter) HEPA Filter Efficiency of 99,9995% at 0.3 Microns H14 (Optional ULPA filter) HEPA Filter Efficiency of 99,9995% at 0.3 Microns H14 (Optional ULPA filter) HEPA Filter Efficiency of 99,9995% at 0.3 Microns H14 (Optional ULPA filter)

צרו קשר לפרטים נוספים והתאמת פתרון

סטטיטק מציבה את שביעות הרצון של לקוחותיה בעדיפות ראשונה.  החברה גמישה במיוחד ומתאימה את המנדפים וריהוט המעבדה לדרישות הלקוח בהיבטי מידות, מפרט טכני ואביזרים. בנוסף, מציעה טופאייר מגוון גדול של מנדפים וריהוט מעבדה כדי לענות על כל צרכי הלקוחות. הקו המוביל את החברה הוא פיתוח פתרונות באיכות גבוהה ובמחירים התחרותיים ביותר על מנת להבטיח את שביעות רצון הלקוחות לאורך זמן.

ANY SIZE, ANY FEATURE

We have many standard sizes, and can make any product in your size, even a single unit, at a fair price – with the features you need.
